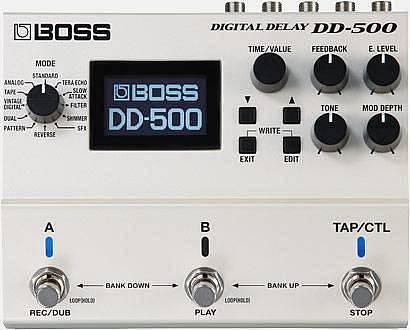

Boss DD 500 Digital delay

Sampling Frequency

96 kHz

AD/DA Conversion

32 bits

Processing

32-bit floating point

Delay Modes

12 modes
STANDARD
ANALOG
TAPE
VINTAGE DIGITAL
DUAL
PATTERN
TERA ECHO
SLOW ATTACK
FILTER
SHIMMER
SFX

Maximum delay time

10 sec.(depends on delay mode)

Phrase loop

60 sec. (96 kHz/MONO, 48 kHz/STEREO) 120 sec. (48kHz/MONO) Delay can be applied.

Patches

198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])

Pedals

Foot switch x 3 [A][B][TAP/CTL]

Knobs

MODE
TIME/VALUE
FEEDBACK
E.LEVEL
TONE
MOD DEPTH

Display

Graphic LCD (128 x 62 dots, backlit LCD) x 1

Nominal Input Level

INPUT A/MONO, B: -10 dBu

Maximum Input Level

INPUT A/MONO, B: +8 dBu

Input Impedance

INPUT A/MONO, B: 1 M ohm

Nominal Output Level

OUTPUT A/MONO, B: -10 dBu

Maximum Output Level

OUTPUT A/MONO, B: +8 dBu

Output Impedance

OUTPUT A/MONO, B: 2 k ohms

Recommended Load Impedance

OUTPUT A/MONO, B: 20 k ohms or greater

Bypass

Bufferd bypass or True bypass(with relays)

Connectors

INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TSR phone type
USB COMPUTER port: USB type B USB-MIDI
MIDI (IN, OUT) connectors
DC IN jack

Power Supply

Alkaline battery (AA, LR6) x 4
AC adaptor

Current Draw

190 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)

Alkaline: Approx. 7 hours

Accessories

Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4

Options (sold separately)

AC adaptor: PSA series
Footswitch: BOSS FS-5U, FS-5L
Dual Footswitch: BOSS FS-6, FS-7
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5

Size and Weight

Width

170 mm
6-3/4 inches

Depth

138 mm
5-7/16 inches

Height

62 mm
2-1/2 inches

Weight(excluding AC Adaptor)

1.0 g
