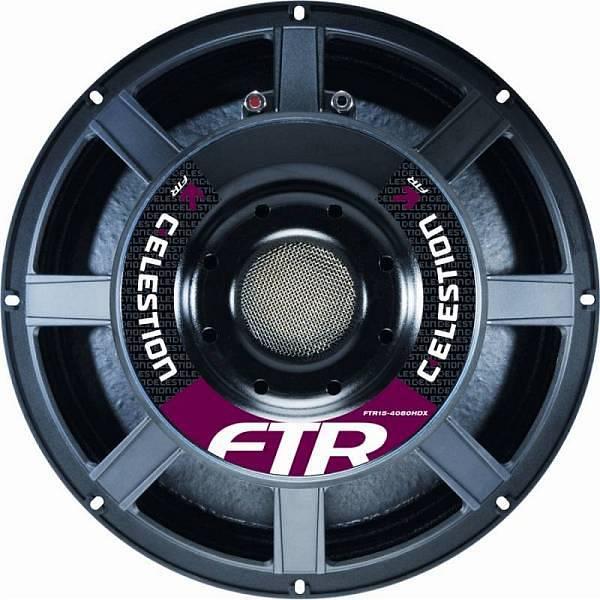

Celestion FTR15-4080HD 1000W 8ohm
Altre attrezzature live Celestion
Pagamenti
Pagamenti sicuri
Spedizione Veloce
in 24/48 ore
Ritira in negozio
puoi ordinare questo prodotto sul sito al prezzo online e ritirarlo gratuitamente in negozio.
Domande?
Contattaci per consigli, accessori, riparazioni e diritto di recesso.
Garanzia
I prodotti nuovi ed ex-demo sono garantiti 24 mesi. I Prodotti usati sono garantiti 12 mesi.
Altre attrezzature live Celestion FTR15-4080HD 1000W 8ohm
General Specifications
Nominal diameter: 381mm/15in
Power rating1: 1000Wrms
Nominal impedance: 8ohm
Sensitivity2: 96dB
Frequency range: 40-2500Hz
Voice coil diameter: 100mm/4in
Chassis type: Cast aluminium
Magnet type: Ferrite
Magnet weight: 3.1kg/110oz
Coil material: Round copper
Former material: Glass fibre
Cone material: Glass loaded paper with weather resistant impregnation
Surround material: Cloth-sealed
Suspension: Double
Xmax3: 8mm/0.33in
Gap depth: 9.5mm/0.37in
Voice coil winding width: 25mm/0.99in
Small Signal Parameters4
D: 0.33m/12.99in
Fs: 40.5Hz
Mms: 153.53g/5.42oz
Mmd: 139.38g/4.92oz
Qms: 3.98
Qes: 0.36
Qts: 0.33
Re: 5.10ohm
Vas: 104.27lt/3.68ft3
BI: 23.53Tm
Cms: 0.10mm
Rms: 9.81kg/s
Le (at 1kHz): 1.8mH
Mounting Information
Overall diameter: 385mm/15.16in
Overall depth: 180mm/7.1in
Cut-out diameter: 351mm/13.82in
Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in
Number of mounting slots: 8
Mounting slot PCD range: 365-375mm/14.37-14.76in
Unit weight: 9.7kg/21.3lb
Packed Dimensions & Weight
Single pack size W x D x H . . . . 435mm x 435mm x 200mm/17.1in x 17.1in x 7.9in
Single pack weight: 11.5kg/25.4lb
Multipack (36) size W x D x H: 1210mm x 1050mm x 980mm/47.6in x 41.3in x 35.4in
Multipack (36) weight: 390kg/860lb
Nominal diameter: 381mm/15in
Power rating1: 1000Wrms
Nominal impedance: 8ohm
Sensitivity2: 96dB
Frequency range: 40-2500Hz
Voice coil diameter: 100mm/4in
Chassis type: Cast aluminium
Magnet type: Ferrite
Magnet weight: 3.1kg/110oz
Coil material: Round copper
Former material: Glass fibre
Cone material: Glass loaded paper with weather resistant impregnation
Surround material: Cloth-sealed
Suspension: Double
Xmax3: 8mm/0.33in
Gap depth: 9.5mm/0.37in
Voice coil winding width: 25mm/0.99in
Small Signal Parameters4
D: 0.33m/12.99in
Fs: 40.5Hz
Mms: 153.53g/5.42oz
Mmd: 139.38g/4.92oz
Qms: 3.98
Qes: 0.36
Qts: 0.33
Re: 5.10ohm
Vas: 104.27lt/3.68ft3
BI: 23.53Tm
Cms: 0.10mm
Rms: 9.81kg/s
Le (at 1kHz): 1.8mH
Mounting Information
Overall diameter: 385mm/15.16in
Overall depth: 180mm/7.1in
Cut-out diameter: 351mm/13.82in
Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in
Number of mounting slots: 8
Mounting slot PCD range: 365-375mm/14.37-14.76in
Unit weight: 9.7kg/21.3lb
Packed Dimensions & Weight
Single pack size W x D x H . . . . 435mm x 435mm x 200mm/17.1in x 17.1in x 7.9in
Single pack weight: 11.5kg/25.4lb
Multipack (36) size W x D x H: 1210mm x 1050mm x 980mm/47.6in x 41.3in x 35.4in
Multipack (36) weight: 390kg/860lb
