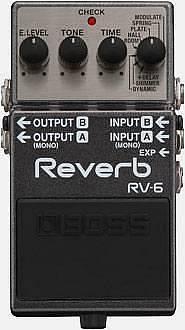

Boss RV 6 Reverb

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Controls

Pedal switch
E.LEVEL knob
TONE knob
TIME knob
MODE knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT-A (MONO) jack
INPUT-B jack
OUTPUT-A (MONO) jack
OUTPUT-B jack
EXP jack
AC adaptor jack (DC 9 V)

Power Supply

Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately)

Current Draw

65 mA

Expected battery life under continuous use
(These figures will vary depending on the actual conditions of use.)

Alkaline: Approx. 5 hours

Accessories

Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)


Options (sold separately)

AC adaptor (PSA series) Expression Pedal (Roland EV-5)

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight(excluding AC Adaptor)

450 g
