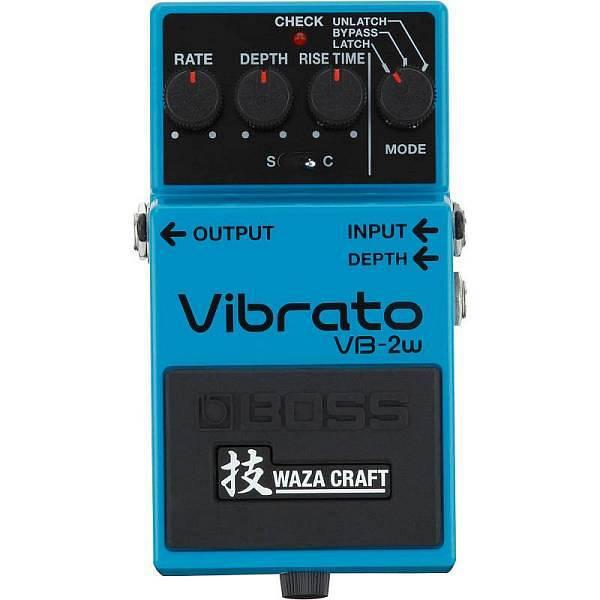

Boss VB-2w - pedale vibrato waza craft

Il celebre VB-2 rinasce nella mani del Waza Craft team: con circuitazione tutta analogica viene riprodotto il vibrato pitch-shifted del pedale originale, e vengono introdotte nuove funzionalità.

Specifications
Modes
3 modes
LATCH
UNLATCH
BYPASS
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
Pedal switch
Standard/Custom switch
RATE knob
DEPTH knob
RISE TIME knob
MODE knob
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack
OUTPUT jack
DEPTH jack
DC IN jack
Power Supply
Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately)
Current Draw
35 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 22 hours
Carbon: Approx. 4 hours
Accessories
Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Expression Pedal: FV-500H, FV-500L, Roland EV-5

Width
73 mm
Depth
129 mm
Height
59 mm
Weight (including battery)
450 g
