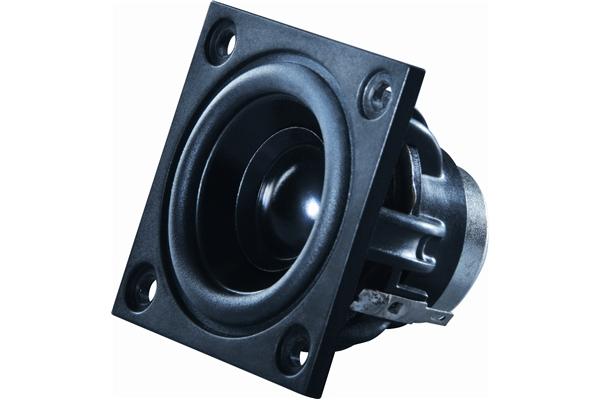

Celestion AN2075 20W 8ohm
Home & Studio Recording Celestion
Pagamenti
Pagamenti sicuri
Spedizione Veloce
in 24/48 ore
Ritira in negozio
puoi ordinare questo prodotto sul sito al prezzo online e ritirarlo gratuitamente in negozio.
Domande?
Contattaci per consigli, accessori, riparazioni e diritto di recesso.
Garanzia
I prodotti nuovi ed ex-demo sono garantiti 24 mesi. I Prodotti usati sono garantiti 12 mesi.
Home & Studio Recording Celestion AN2075 20W 8ohm
General Specifications
Nominal diameter: 50mm/2in
Power rating1: 20Wrms
Nominal impedance: 8ohm
Sensitivity2: 80dB
Frequency range: 160Hz-19kHz
Voice coil diameter: 20mm/0.75in
Chassis type: Glass reinforced ABS
Magnet type: Neodymium
Coil material: Round Copper
Former material: Polyimide
Cone material: Aluminium
Surround material: Elastomer
Xmax3: 1.5mm/0.06in
Gap depth: 3mm/0.12in
Voice coil winding width: 6mm/0.24in
Voice coil material: Round Copper
Voice coil former materia: Polyimide
Bandwidth: 200Hz-20kHz
Small Signal Parameters
D: 40mm/1.57in
Fs: 160Hz
Mms: 1.37g/0.05oz
Qms: 10.12
Qes: 1.22
Qts: 1.09
Re: 5.28ohm
Vas: 0.12lt/0.004ft3
BI: 2.60Tm
Cms: 0.55mm/N
Mounting Information
Overall depth: 43.5mm/1.7in
Overall size: 56.2 x 56.2mm/2.2 x 2.2in
Cut-out diameter: 51.1mm/2.0in
Fitting: 4 x M4 holes
Mounting PCD range: Ø62mm/2.45in
Unit weight: 97g/3.4oz
Nominal diameter: 50mm/2in
Power rating1: 20Wrms
Nominal impedance: 8ohm
Sensitivity2: 80dB
Frequency range: 160Hz-19kHz
Voice coil diameter: 20mm/0.75in
Chassis type: Glass reinforced ABS
Magnet type: Neodymium
Coil material: Round Copper
Former material: Polyimide
Cone material: Aluminium
Surround material: Elastomer
Xmax3: 1.5mm/0.06in
Gap depth: 3mm/0.12in
Voice coil winding width: 6mm/0.24in
Voice coil material: Round Copper
Voice coil former materia: Polyimide
Bandwidth: 200Hz-20kHz
Small Signal Parameters
D: 40mm/1.57in
Fs: 160Hz
Mms: 1.37g/0.05oz
Qms: 10.12
Qes: 1.22
Qts: 1.09
Re: 5.28ohm
Vas: 0.12lt/0.004ft3
BI: 2.60Tm
Cms: 0.55mm/N
Mounting Information
Overall depth: 43.5mm/1.7in
Overall size: 56.2 x 56.2mm/2.2 x 2.2in
Cut-out diameter: 51.1mm/2.0in
Fitting: 4 x M4 holes
Mounting PCD range: Ø62mm/2.45in
Unit weight: 97g/3.4oz
