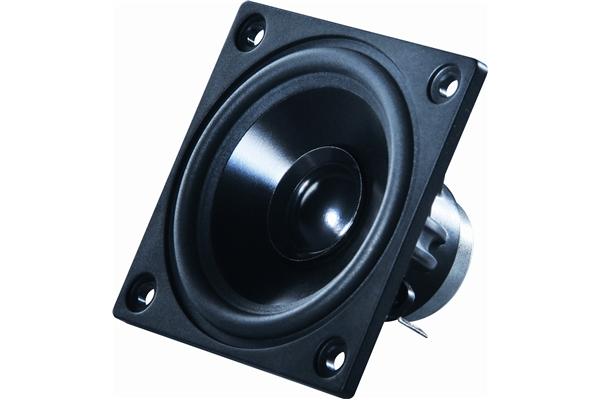

Home & Studio Recording Celestion AN2775 20W 8ohm
General Specifications
Nominal diameter: 70mm/2.75in
Power rating1: 20Wrms
Nominal impedance: 8ohm
Sensitivity2: 84dB
Frequency range: 160-20,000Hz
Voice coil diameter: 20mm/0.75in
Chassis type: Glass reinforced ABS
Magnet type: Neodymium
Voice coil material: Round Copper
Former material: Polyimide
Cone material: Aluminium
Surround material: Elastomer
Xmax3: 1.5mm/0.06in
Gap depth: 3mm/0.12in
Voice coil winding width: 6mm/0.24in
Small Signal Parameters
D: 60mm/2.36in
Fs: 150Hz
Mms: 1.83g/0.06oz
Qms: 12.21
Qes: 1.67
Qts: 1.47
Re: 5.20ohm
Vas: 0.58lt/0.020ft3
BI: 2.43Tm
Cms: 0.51mm/N
Mounting Information
Overall depth: 45mm/1.8in
Overall size: 71.3 x 71.3mm/2.8 x 2.8in
Cut-out diameter: 66.1mm/2.6in
Fitting: 4 x M4 holes
Mounting PCD range: Ø82mm/3.2in
Unit weight: 100g/3.53oz
