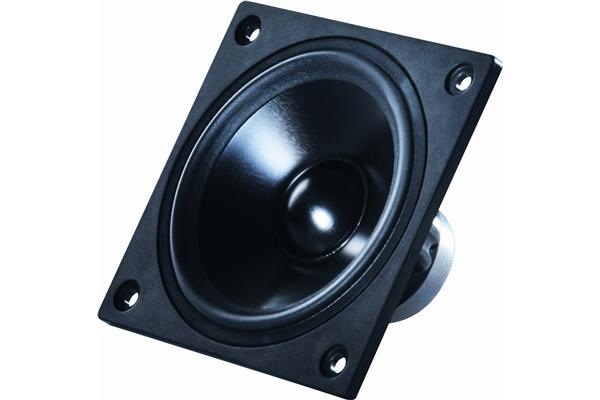

Home & Studio Recording Celestion AN3510 35W 8ohm
General Specifications
Nominal diameter: 88mm/3.5in
Power rating1: 35Wrms
Nominal impedance: 8ohm
Sensitivity2: 87dB
Frequency range: 98-18,500Hz
Voice coil diameter: 25mm/1.0in
Chassis type: Glass reinforced ABS
Magnet type: Neodymium
Voice coil material: Round Copper
Former material: Polyimide
Cone material: Aluminium
Surround material: Elastomer
Xmax3: 1.25mm/0.04in
Gap depth: 4mm/0.14in
Voice coil winding width: 6.5mm/0.23in
Small Signal Parameters
D: 70mm/2.76in
Fs: 98Hz
Mms: 3.37g/0.12oz
Qms: 6.59
Qes: 0.66
Qts: 0.67
Re: 5.73ohm
Vas: 1.3lt/0.046ft3
Bl: 4.5Tm
Cms: 0.62mm/N
Mounting Information
Overall depth: 50mm/2in
Overall size: 89.3 x 89.3mm/3.52 x 3.52in
Cut-out diameter: 78.8mm/3.1in
Fitting: 4 x M4 holes
Mounting PCD range: Ø104mm/4.1in
Unit weight: 160g/5.65oz
Nominal diameter: 88mm/3.5in
Power rating1: 35Wrms
Nominal impedance: 8ohm
Sensitivity2: 87dB
Frequency range: 98-18,500Hz
Voice coil diameter: 25mm/1.0in
Chassis type: Glass reinforced ABS
Magnet type: Neodymium
Voice coil material: Round Copper
Former material: Polyimide
Cone material: Aluminium
Surround material: Elastomer
Xmax3: 1.25mm/0.04in
Gap depth: 4mm/0.14in
Voice coil winding width: 6.5mm/0.23in
Small Signal Parameters
D: 70mm/2.76in
Fs: 98Hz
Mms: 3.37g/0.12oz
Qms: 6.59
Qes: 0.66
Qts: 0.67
Re: 5.73ohm
Vas: 1.3lt/0.046ft3
Bl: 4.5Tm
Cms: 0.62mm/N
Mounting Information
Overall depth: 50mm/2in
Overall size: 89.3 x 89.3mm/3.52 x 3.52in
Cut-out diameter: 78.8mm/3.1in
Fitting: 4 x M4 holes
Mounting PCD range: Ø104mm/4.1in
Unit weight: 160g/5.65oz
