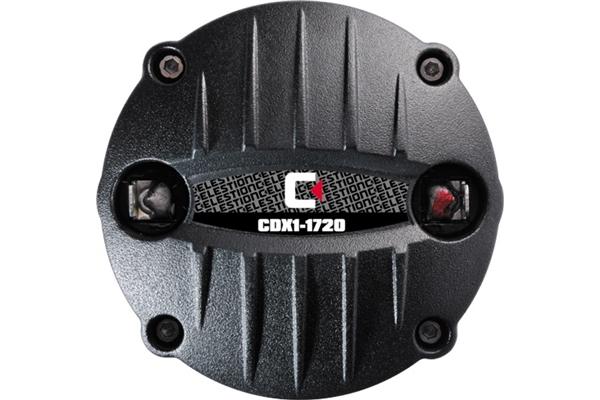

Celestion CDX1-1720 50W 8ohm

Features

- 1" exit, lightweight and compact compression driver featuring neodymium magnet and 1.75" diameter titanium diaphragm

- 50Wrms (AES standard) power handling and 107dB sensitivity

- Rolled polyimide surround improves stiffness control, further lowering distortion

- Lower resonance enabling lower crossover frequency

- Patented phase plug design method suppresses cavity resonances at frequencies higher than that of conventional designs

- Lower compression ratio reduces air non-linearity and allows for higher maximum SPL

- Curved coherent wavefront, optimised for horn loading

General Specifications

Power rating(1): 50Wrms

Continuous power rating(2): 100W

Nominal impedance: 8ohm

Sensitivity(3): 107dB

Frequency range: 800-20,000Hz

Recommended min. crossover (12dB/oct): 1500Hz

Voice coil diameter: 44mm/1.75in

Voice coil material: Edgewound copper clad aluminium

Magnet type: Neodymium

Diaphragm material: Titanium

Surround material: Polyimide

Mounting Information

Maximum width: 88.5mm/3.48in

Minimum width: 82.0mm/3.23in

Depth: 55mm/2.2in

Weight: 0.65kg/1.4lb

Fitting: Flange (4 x M6 holes on 76mm/3in PCD)

Throat exit: 25.4mm/1in

Compatible Horns

H1-9040P , H1-7050 "No Bell"

(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
