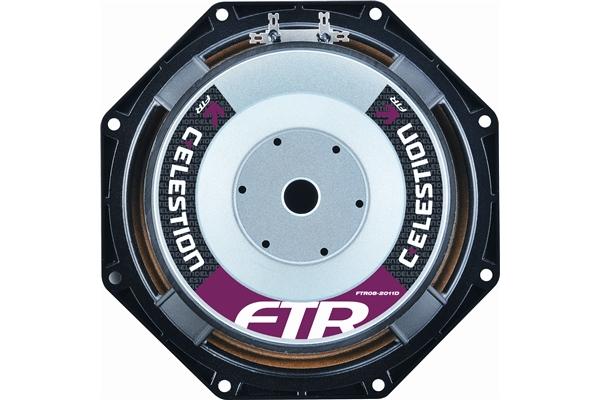

Celestion FTR08-2011D 200W 8ohm
Home & Studio Recording Celestion
€ 123,00
Tasse incluse
Puoi acquistarlo anche in 4 rate con FLOA a € 30,75
Su richiesta
Pagamenti
Pagamenti sicuri
Spedizione Veloce
in 24/48 ore
Ritira in negozio
puoi ordinare questo prodotto sul sito al prezzo online e ritirarlo gratuitamente in negozio.
Domande?
Contattaci per consigli, accessori, riparazioni e diritto di recesso.
Garanzia
I prodotti nuovi ed ex-demo sono garantiti 24 mesi. I Prodotti usati sono garantiti 12 mesi.
Home & Studio Recording Celestion FTR08-2011D 200W 8ohm
General Specifications
Nominal diameter 200mm/8in
Power rating1 200Wrms
Nominal impedance 8ohm
Sensitivity2 93dB
Frequency range 70-6000Hz
Voice coil diameter 50mm/2in
Chassis type Cast Aluminium
Magnet type Ferrite
Coil material Round copper
Former material Polyimide
Cone material Kevlar loaded paper
Surround material Cloth-sealed
Suspension Single
Xmax3 3.5mm/0.137in
Gap depth 8mm/0.31in
Voice coil winding width 15mm/0.59in
Small Signal Parameters
D 0.17m/6.69in
Fs 88.4Hz
Mms 26.94g/0.95oz
Mmd 25.01g/0.88oz
Qms 2.594
Qes 0.572
Qts 0.469
Re 5.74ohm
Vas 8.77lt/0.30ft3
BI 12.26Tm
Cms 0.12mm/N
Rms 5.769kg/s
Le (at 1kHz) 0.39mH
Mounting Information
Diameter 225mm/8.8in
Overall depth 102mm/4.0in
Cut-out diameter 187mm/7.4in
Mounting slot dimensions diam. 6.5mm/0.26in
Number of mounting slots 8
Mounting PCD range 210mm/8.3in
Unit weight 3.65kg/8.0lb
Packed Dimensions and Weight
Single pack size W x D x H 226mm x 226mm x 130mm /8.9in x 8.9in x 5.1in
Single pack weight 3.8kg/8.4lb
Multipack (8) size W x D x H 470mm x 450mm x 270mm/18.5in x 17.7in x 10.6in
Multipack (8) weight 31kg/68.3lb
