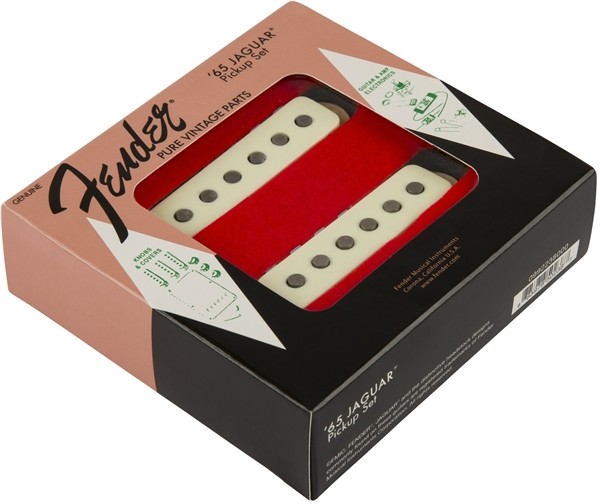

Fender Pure Vintage '65 Jaguar Pickup Set, Vintage White, (2)

From vintage bobbin construction to genuine original-era cloth wiring, all Fender Pure Vintage pickups are wound to precise specifications for authentic, traditional Fender tone and performance.

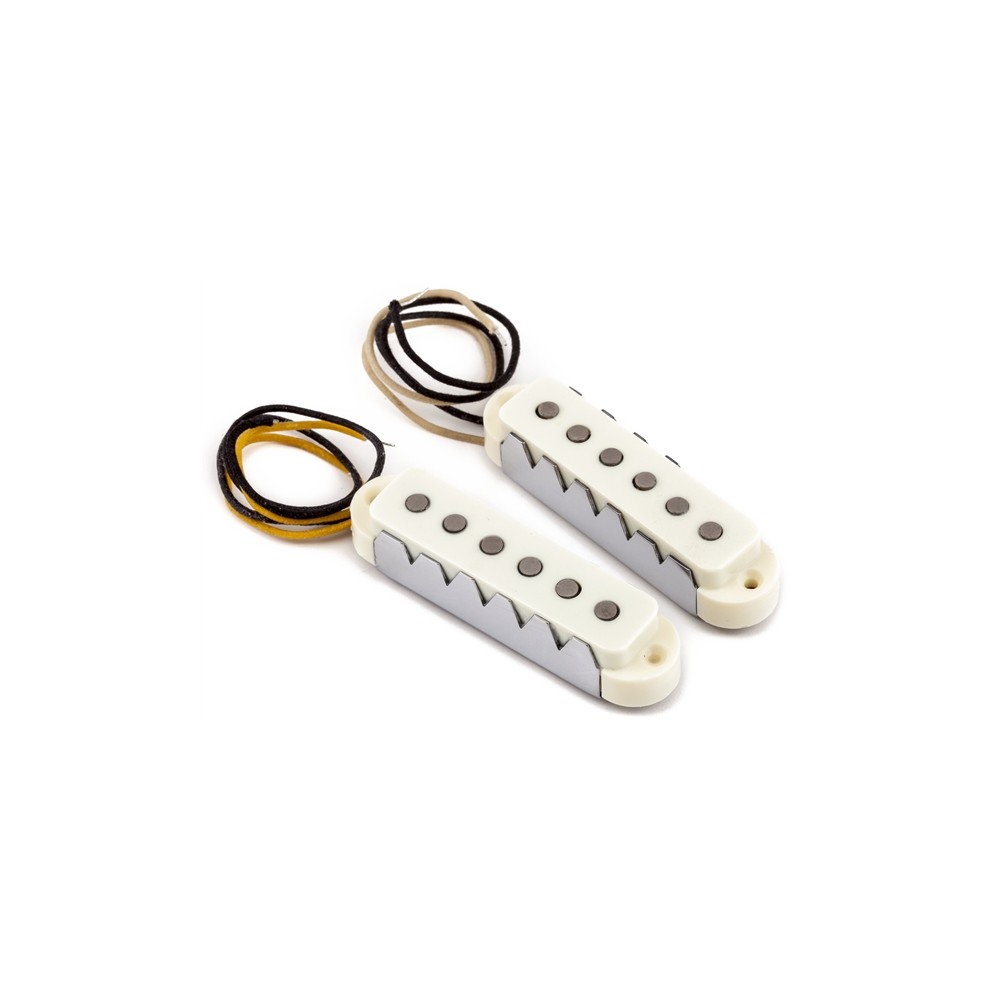

Pure Vintage '65 Jaguar Pickup Set

As Heard on
Fender American Vintage ’65 Jaguar® guitar

Achieve the clean and clear sound of the mid-’60s Jaguar model, with vintage-correct pickups that exude the same liquid-hot tone and snarling angular attitude as the ax that sparked surf rock.

Tonal Characteristics

• Enamel-coated magnet wire delivers warm vintage-style tones
• Alnico 5 magnets add more focus and enhanced dynamics
• Flush-mount polepieces produce even string response
• Wax-potted

Product Details

• Period-correct cloth wire and fiber bobbin construction
• Includes aged white pickup covers

Included Components
Fender Pure Vintage '65 Jaguar pickups come with all parts needed for installation, including:

• Mounting screws
• Pickup height adjustment tubing
• Wiring diagram

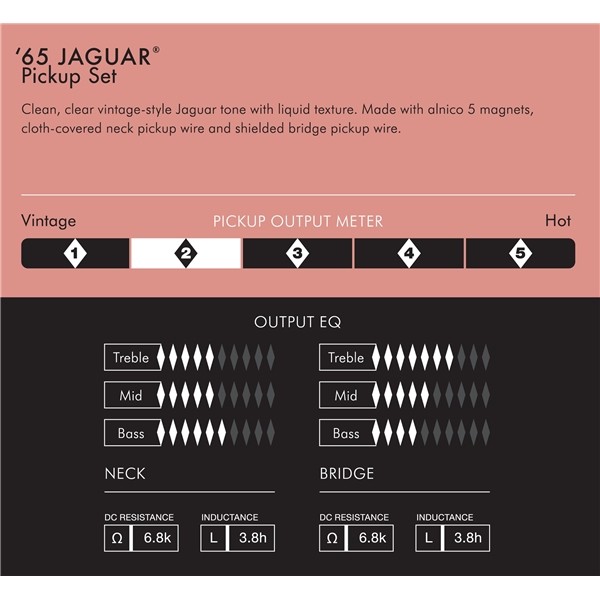

Output Rating (Bass/Mid/Treble)

• Neck: 6/5/5
• Bridge: 4/5/7

Other Specifications

DC Resistance

• Neck: 6.8k ohms
• Bridge: 6.8k ohms

Inductance

• Neck: 3.2 henries
• Bridge:  3.2 henries
