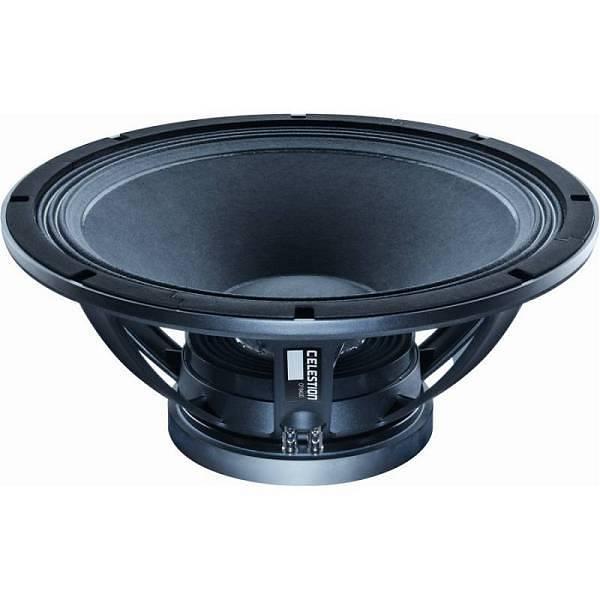

Celestion CF1840JD 1000W 8ohm
Altre attrezzature live Celestion
Pagamenti
Pagamenti sicuri
Spedizione Veloce
in 24/48 ore
Ritira in negozio
puoi ordinare questo prodotto sul sito al prezzo online e ritirarlo gratuitamente in negozio.
Domande?
Contattaci per consigli, accessori, riparazioni e diritto di recesso.
Garanzia
I prodotti nuovi ed ex-demo sono garantiti 24 mesi. I Prodotti usati sono garantiti 12 mesi.
Altre attrezzature live Celestion CF1840JD 1000W 8ohm
General Specifications
Nominal diameter: 457mm/18in
Power rating1: 1000Wrms
Nominal impedance: 8ohm
Sensitivity2: 98dB
Frequency range: 30-2500Hz
Voice coil diameter: 100mm/4in
Chassis type: Cast aluminium
Magnet type: Ferrite
Magnet weight: 3.18kg/112oz
Coil material: Round copper
Former material: Glass fibre
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Double
Xmax3: 10mm/0.39in
Gap depth: 10mm/0.39in
Voice coil winding width: 30mm/1.18in
Small Signal Parameters
D: 0.21m
Fs: 44.2Hz
Mms: 215.15g/7.59oz
Mmd: 185.145g/6.54oz
Qms: 4.21
Qes: 0.496
Qts: 0.444
Re: 5.29ohm
Vas: 113.924
BI: 24.758Tm
Cms: 0.063mm
Rms: 13.653kg/s
Le (at 1kHz): 0.96mH
Mounting Information
Diameter: 460mm/18.11in
Overall depth: 220.35mm/8.68in
Cut-out diameter: 412.6mm/16.24in
Mounting slot dimensions: 11mm x 7mm/0.43-0.28in
Number of mounting slots: 8
Mounting PCD range: 441-432mm/17.36-17.01in
Unit weight: 11.6kg/25.5lb
