CD / DVD / Didattica Celestion CDX1-1742 50W 8ohm HF FERRITE T5983

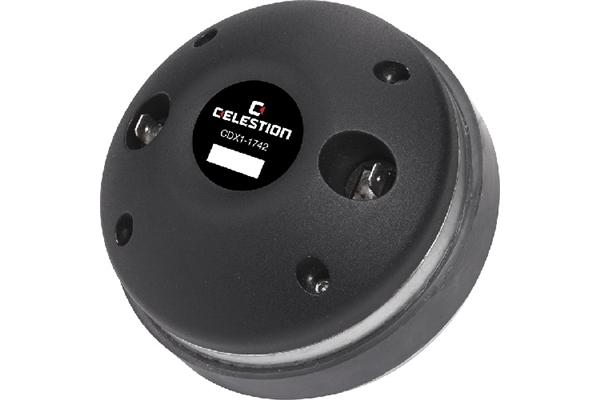

Celestion - CDX1-1742 50W 8ohm - HF Compression Driver - Ferrite
Features
2,000Hz recommended min. crossover freq (12dB/oct) Single piece polyimide diaphragm and surround Sound Castle soft clamping diaphragm assembly
General Specifications
Power rating(1): 50Wrms Continuous power rating(2): 100W Nominal impedance: 8ohm Frequency range: 1200-20,000Hz Sensitivity(3): 107dB Recommended min. crossover (12dB/oct): 2,200Hz Voice coil diameter: 44mm/1.75in Voice coil material: Edgewound copper clad aluminium Magnet type: Ferrite Diaphragm material: Polyimide Surround material: Polyimide
Mounting Information
Width: 100mm/4in Depth: 53.5mm/2.1in Weight: 1.43kg/3.1lb Fitting: Flange (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD) Throat exit: 25mm/1in
Compatible Horns
H1-9040P , H1-7050 ‘No Bell’
Note
(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on
minimum impedance. (2)Continuous Power Rating is defined as 3dB greater than the AES rating. (3)Measured on axis at 1W, 1m, using typical horn, in 2pi anechoic environment.
