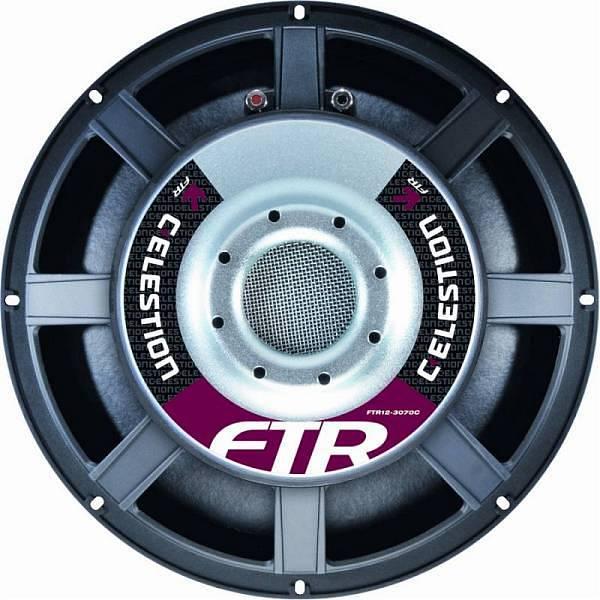

Altre attrezzature live Celestion FTR12-3070C 350W 8ohm
General Specifications
Nominal diameter 305mm/12in
Power rating1 350Wrms
Nominal impedance 8ohm
Sensitivity2 96dB
Frequency range 40-4000Hz
Voice coil diameter 75mm/3in
Chassis type Cast aluminium
Magnet type Ferrite
Magnet Weight 2.3kg/81oz
Coil material Round copper
Former material Glass fibre<
Cone material Glass loaded paper with weather-resistant impregnation
Surround material Cloth-sealed
Suspension Single
Xmax3 4mm/0.16in
Gap depth 8mm/0.32in
Voice coil winding width 16mm/0.63in
Small Signal Parameters4
D 0.26m/10.24in
Fs 66.1Hz
Mms 58.51g/2.07oz
Mmd 51.59g/1.82oz
Qms 2.90
Qes 0.375
Qts 0.332
Re 5.44ohm
Vas 39.57lt/1.40ft3
BI 18.78Tm
Cms 0.099mm
Rms 8.374kg/s
Le (at 1kHz) 1.25mH
Mounting Information
Overall diameter 318mm/12.5in
Overall depth 102mm/4.02in
Cut-out diameter 286mm/11.26in
Mounting slot dimensions 7.5mm x 6.5mm/0.3in x 0.26in
Number of mounting slots 8
Mounting slot PCD range 298-304mm/11.7-12.0in
Unit weight 6.3kg/13.9lb
Packed Dimensions and Weight
Single pack size W x D x H 350mm x 350mm x 180mm/13.8in x 13.8in x 7.1in
Single pack weight 8.1kg/17.8l
Multipack (60) size W x D x H 1210mm x 1050mm x 980mm /47.6in x 41.3in x 35.4in
Multipack (60) weight 400kg/880lb
Nominal diameter 305mm/12in
Power rating1 350Wrms
Nominal impedance 8ohm
Sensitivity2 96dB
Frequency range 40-4000Hz
Voice coil diameter 75mm/3in
Chassis type Cast aluminium
Magnet type Ferrite
Magnet Weight 2.3kg/81oz
Coil material Round copper
Former material Glass fibre<
Cone material Glass loaded paper with weather-resistant impregnation
Surround material Cloth-sealed
Suspension Single
Xmax3 4mm/0.16in
Gap depth 8mm/0.32in
Voice coil winding width 16mm/0.63in
Small Signal Parameters4
D 0.26m/10.24in
Fs 66.1Hz
Mms 58.51g/2.07oz
Mmd 51.59g/1.82oz
Qms 2.90
Qes 0.375
Qts 0.332
Re 5.44ohm
Vas 39.57lt/1.40ft3
BI 18.78Tm
Cms 0.099mm
Rms 8.374kg/s
Le (at 1kHz) 1.25mH
Mounting Information
Overall diameter 318mm/12.5in
Overall depth 102mm/4.02in
Cut-out diameter 286mm/11.26in
Mounting slot dimensions 7.5mm x 6.5mm/0.3in x 0.26in
Number of mounting slots 8
Mounting slot PCD range 298-304mm/11.7-12.0in
Unit weight 6.3kg/13.9lb
Packed Dimensions and Weight
Single pack size W x D x H 350mm x 350mm x 180mm/13.8in x 13.8in x 7.1in
Single pack weight 8.1kg/17.8l
Multipack (60) size W x D x H 1210mm x 1050mm x 980mm /47.6in x 41.3in x 35.4in
Multipack (60) weight 400kg/880lb
