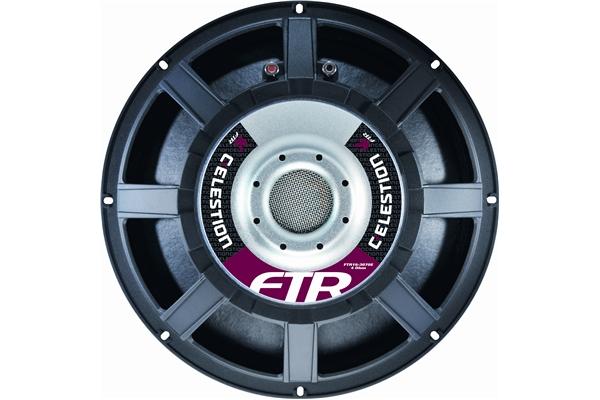

Home & Studio Recording Celestion FTR15-3070E 400W 8ohm
General Specifications
Nominal diameter: 381mm/15in
Power rating1: 400Wrms
Nominal impedance: 8ohm
Sensitivity2: 97dB
Frequency range: 40-4000Hz
Voice coil diameter: 75mm/3in
Chassis type: Cast aluminium
Magnet type: Ferrite
Magnet weight: 2.3kg/81oz
Coil material: Round copper
Former material: Glass fibre
Cone material: Glass loaded paper with weather-resistant impregnation
Surround material: Cloth-sealed
Suspension: Single
Xmax3: 5.5mm/0.22in
Gap depth: 9mm/0.35in
Voice coil winding width: 20mm/0.79in
Small Signal Parameters4
D: 0.33m/8.38in
Fs: 45.3Hz
Mms: 88.69g/3.13oz
Mmd: 74.54g/2.63oz
Qms: 3.07
Qes: 0.46
Qts: 0.40
Re: 5.36ohm
Vas: 143.85lt/5.08ft3
BI: 17.24Tm
Cms: 0.14mm/N
Rms: 8.22kg/s
Le (at 1kHz): 1.3mH
Mounting Information
Overall diameter: 385mm/15.16in
Overall depth: 161mm/6.34in
Cut-out diameter: 351mm/13.82in
Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in
Number of mounting slots: 8
Mounting slot PCD range: 365-375mm/14.37-14.76in
Unit weight: 6.4kg/14.1lb
Packed Dimensions & Weight
Single pack size W x D x H: 435mm x 435mm x 200mm /17.1in x 17.1in x 7.9in
Single pack weight: 7.7kg/17.0lb
Multipack (36) size W x D x H:1210mm x 1050mm x 980mm /47.6in x 41.3in x 35.4in
Multipack (36) weight: 278kg/613lb
