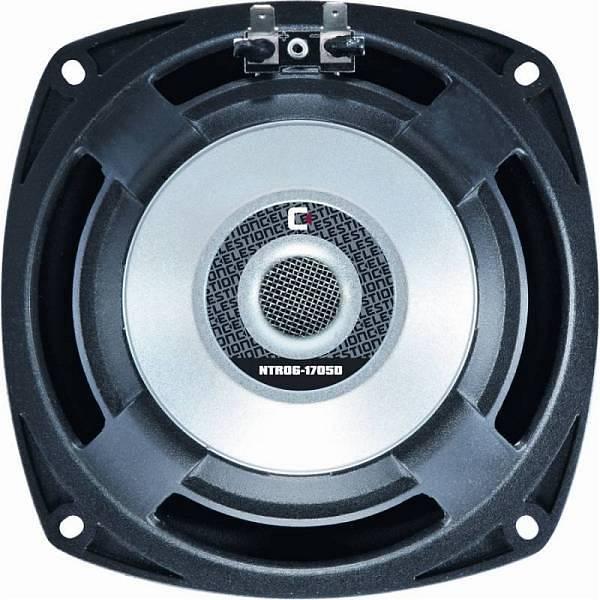

Celestion NTR06-1705D 150W 8ohm
Altre attrezzature live Celestion
Pagamenti
Pagamenti sicuri
Spedizione Veloce
in 24/48 ore
Ritira in negozio
puoi ordinare questo prodotto sul sito al prezzo online e ritirarlo gratuitamente in negozio.
Domande?
Contattaci per consigli, accessori, riparazioni e diritto di recesso.
Garanzia
I prodotti nuovi ed ex-demo sono garantiti 24 mesi. I Prodotti usati sono garantiti 12 mesi.
Altre attrezzature live Celestion NTR06-1705D 150W 8ohm
General Specifications
Nominal diameter: 165mm/6.5in
Power rating1: 150Wrms
Nominal impedance: 8ohm
Sensitivity2: 90dB
Frequency range: 70-7000Hz
Voice coil diameter: 45mm/1.75in
Chassis type: Cast aluminium
Magnet type: Neodymium
Coil material: Copper clad aluminium
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Elastomer
Suspension: Single
Xmax3: 4.5mm/0.18in
Gap depth: 6mm/0.24in
Voice coil winding width: 15mm/0.63in
Small Signal Parameters4
D: 0.13m/5.12in
Fs: 59.8Hz
Mms: 17.52g/0.618oz
Mmd: 16.66g/0.588oz
Qms: 8.240
Qes: 0.446
Qts: 0.423
Re: 5.22ohm
Vas: 10.07lt/0.38ft3
BI: 8.79Tm
Cms: 0.404mm
Rms: 0.799kg/s
Le (at 1kHz): 0.17mH
Mounting Information
Overall diameter: Max 189mm/7.44in - Min 162mm/6.38in
Overall depth: 87mm/3.43in
Cut-out diameter: 150mm/5.9in
Mounting slot dimensions: 6.5mm x 5.5mm/0.26in x 0.22in
Number of mounting slots: 4
Mounting slot PCD range: 173.5mm/6.83in
Unit weight: 0.95kg/2.09lb
Packed Dimensions & Weight
Single pack size W x D x H: 190mm x 190mm x 110mm/7.5in x 7.5in x 4.3in
Single pack weight: 1.1kg/2.4lb
Multi pack (120) size W x D x H: 1070mm x 850mm x 860mm/42.1in x 33.5in x 33.9in
Multi pack (120) weight: 140kg/308lb
