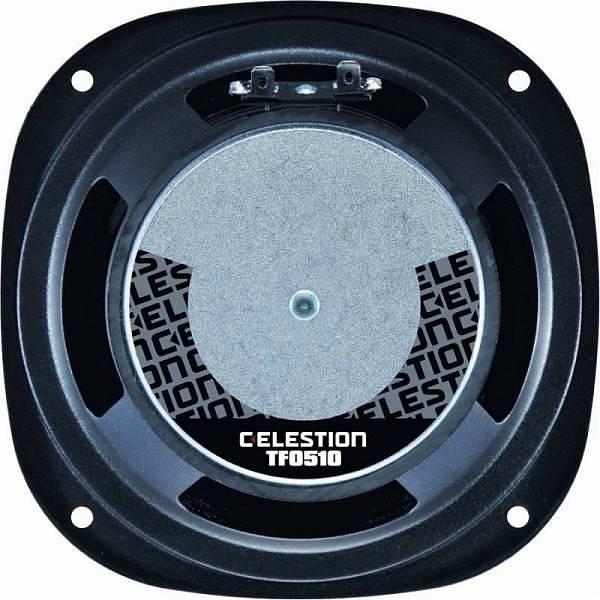

Altre attrezzature live Celestion TF0510 30W 8ohm
General Specifications
Nominal diameter:127mm/5in
Power rating1: 30Wrms
Nominal impedance: 8ohm
Sensitivity2: 91dB
Frequency range: 130-8000Hz
Voice coil diameter: 25mm/1in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.37kg/13oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax3:1.1mm/0.04in
Gap depth: 5mm/0.20in
Voice coil winding width: 7.3mm/0.29in
Small Signal Parameters
D: 0.10m/3.94in
Fs: 106Hz
Mms: 5.7g/0.201oz
Mmd: 5.3g/0.187oz
Qms: 2.40
Qes: 0.58
Qts: 0.46
Re: 6.43ohm
Vas: 4.2lt/0.15ft3
Bl: 6.5Tm
Cms: 0.40mm
Rms: 1.60kg/s
Le (at 1kHz): 0.38mH
Mounting Information
Overall diameter: 136 x 151mm/5.35 x 5.94in
Overall depth: 68mm/2.68in
Cut-out diameter: 117mm/4.61in
Mounting slot dimensions: diam 4.5mm/0.18in
Number of mounting slots: 4
Mounting PCD range: 140mm/5.51in
Unit weight: 1.0kg/2.2lb
Packed Dimensions & Weight
Single pack size W x D x H: 170mm x 180mm x 70mm/6.7in x 7.1in x 2.8in
Single pack weight: 1.5kg/3.3lb
Multi pack (12) size W x D x H: 320mm x 550mm x 190mm /12.6in x 21.7in x 7.5in
Multi pack (12) weight: 13kg/29lb
