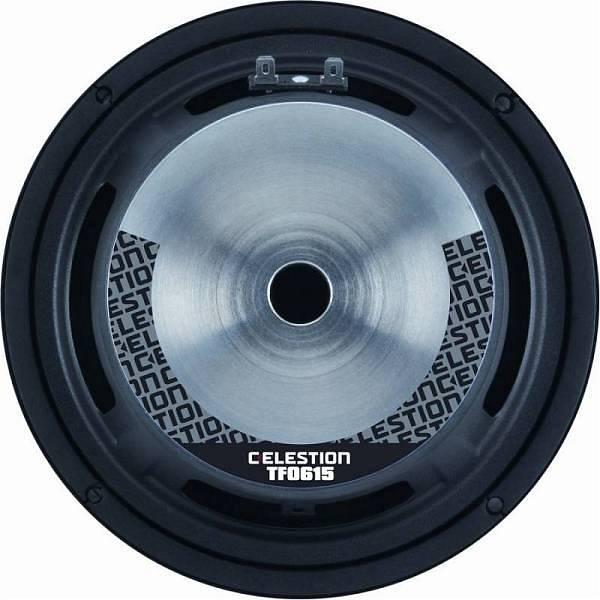

Altre attrezzature live Celestion TF0615 100W 8ohm
General Specifications
Nominal diameter: 152mm/6in
Power rating1: 100Wrms
Nominal impedance: 8ohm
Sensitivity2: 95dB
Frequency range: 85-6000Hz
Voice coil diameter: 38mm/1.5in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.8kg/17oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth sealed
Suspension: Single
Xmax3: 2.5mm/0.1in
Gap depth; 6mm/0.24in
Voice coil winding width: 6.5mm/0.26in
Small Signal Parameters
D: 0.14m/5.51in
Fs: 107.2Hz
Mms: 11.397g/0.402oz
Mmd: 10.316g/0.364oz
Qms: 5.83
Qes: 0.682
Qts: 0.611
Re: 7.25ohm
Vas: 6.49lt/0.23ft3
Bl: 9.03Tm
Cms: 0.193mm
Rms: 1.317kg/s
Mounting Information
Overall diameter: 178mm/7.01in
Overall depth: 74mm/2.91in
Cut-out diameter: 147mm/5.79in
Mounting slot dimensions: Ø 4.3mm/0.17in
Number of mounting slots: 4
Mounting PCD range: 168.5mm/6.63in
Unit weight: 1.4kg/3.1lb
Packed Dimensions & Weight
Single pack size W x D x H . . . . . 190mm x 200mm x 90mm/7.5in x 7.9in x 3.5in
Single pack weight: 2kg/4.4lb
