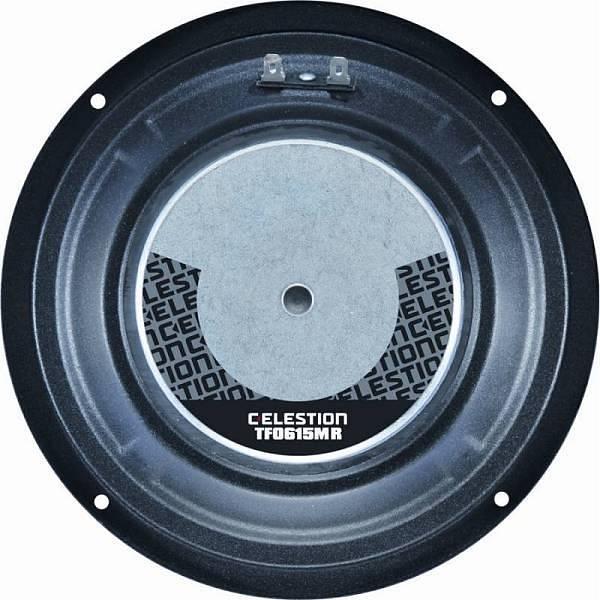

Celestion TF0615MR 50W 8ohm
Altre attrezzature live Celestion
Pagamenti
Pagamenti sicuri
Spedizione Veloce
in 24/48 ore
Ritira in negozio
puoi ordinare questo prodotto sul sito al prezzo online e ritirarlo gratuitamente in negozio.
Domande?
Contattaci per consigli, accessori, riparazioni e diritto di recesso.
Garanzia
I prodotti nuovi ed ex-demo sono garantiti 24 mesi. I Prodotti usati sono garantiti 12 mesi.
Altre attrezzature live Celestion TF0615MR 50W 8ohm
General Specifications
Nominal diameter: 152mm/6in
Power rating1: 50Wrms
Nominal impedance: 8ohm
Sensitivity2: 97dB
Frequency range: 500-5000Hz
Voice coil diameter: 38mm/1.5in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.48kg/17oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Treated paper
Suspension: Single
Xmax: n/a
Gap depth: n/a
Voice coil winding width: n/a
Small Signal Parameter
D: n/a
Fs: 500Hz
Mms: n/a
Mmd: n/a
Qms: n/a
Qes: n/a
Qts: n/a
Re: 5.7ohm
Vas: n/a
Bl: n/a
Cms: n/a
Rms: n/a
Le (at 1kHz): 0.27mH
Mounting Information
Overall diameter: 178mm/7.01in
Overall depth: 74mm/2.91in
Cut-out diameter: 147mm/5.79in
Mounting slot dimensions: Ø 4.3mm/0.17in
Number of mounting slots: 4
Mounting PCD range: 168.5mm/6.63in
Unit weight 1.4kg/3.1lb
Packed Dimensions & Weight
Single pack size W x D x H: 190mm x 200mm x 90mm/7.5in x 7.9in x 3.5in
Single pack weight: 2kg/4.4lb
Multi pack (140) size W x D x H: 1070mmx 850mm x 860mm/42.1in x 33.5in x 33.9in
Multi pack (140) weight: 220kg/485lb
Nominal diameter: 152mm/6in
Power rating1: 50Wrms
Nominal impedance: 8ohm
Sensitivity2: 97dB
Frequency range: 500-5000Hz
Voice coil diameter: 38mm/1.5in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.48kg/17oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Treated paper
Suspension: Single
Xmax: n/a
Gap depth: n/a
Voice coil winding width: n/a
Small Signal Parameter
D: n/a
Fs: 500Hz
Mms: n/a
Mmd: n/a
Qms: n/a
Qes: n/a
Qts: n/a
Re: 5.7ohm
Vas: n/a
Bl: n/a
Cms: n/a
Rms: n/a
Le (at 1kHz): 0.27mH
Mounting Information
Overall diameter: 178mm/7.01in
Overall depth: 74mm/2.91in
Cut-out diameter: 147mm/5.79in
Mounting slot dimensions: Ø 4.3mm/0.17in
Number of mounting slots: 4
Mounting PCD range: 168.5mm/6.63in
Unit weight 1.4kg/3.1lb
Packed Dimensions & Weight
Single pack size W x D x H: 190mm x 200mm x 90mm/7.5in x 7.9in x 3.5in
Single pack weight: 2kg/4.4lb
Multi pack (140) size W x D x H: 1070mmx 850mm x 860mm/42.1in x 33.5in x 33.9in
Multi pack (140) weight: 220kg/485lb
