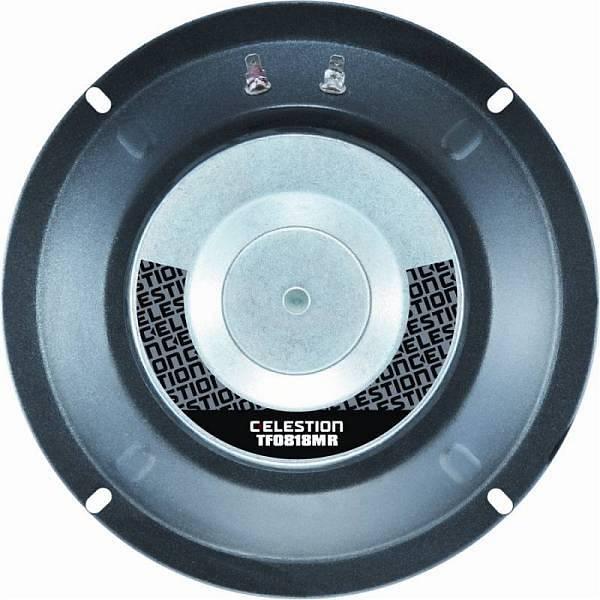

Celestion TF0818MR 100W 8ohm
Altre attrezzature live Celestion
Pagamenti
Pagamenti sicuri
Spedizione Veloce
in 24/48 ore
Ritira in negozio
puoi ordinare questo prodotto sul sito al prezzo online e ritirarlo gratuitamente in negozio.
Domande?
Contattaci per consigli, accessori, riparazioni e diritto di recesso.
Garanzia
I prodotti nuovi ed ex-demo sono garantiti 24 mesi. I Prodotti usati sono garantiti 12 mesi.
Altre attrezzature live Celestion TF0818MR 100W 8ohm
General Specifications
Nominal diameter: 203mm/8in
Power rating1: 100Wrms
Nominal impedance: 8ohm
Sensitivity2: 99dB
Frequency range: 800-5000Hz
Voice coil diameter: 45mm/1.75in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.57kg/20oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Treated paper
Suspension: Single
Xmax: n/a
Gap depth: n/a
Voice coil winding width: n/a
Small Signal Parameters
D: n/a
Fs: 450Hz
Mair: n/a
Mmd: n/a
Qms: n/a
Qes: n/a
Qts: n/a
Re: 6.70ohm
Vas: n/a
Bl: n/a
Cms: n/a
Rms: n/a
Le (at 1kHz): 0.34mH
Mounting Information
Overall diameter: 208mm/8.19in
Overall depth: 85mm/3.35in
Cut-out diameter: 183mm/7.20in
Mounting slot dimensions: 9.5mm x 5.5mm/0.37in x 0.22in
Number of mounting slots: 4
Mounting PCD range: 195-199mm/7.68-7.83in
Unit weight:1.9kg/4.2lb
Packed Dimensions & Weight
Single pack size W x D x H: 230mm x 230mm x 1100mm/9.1in x 9.1in x 4.3in
Single pack weight: 3kg/6.6lb
Multi pack (140) size W x D x H: 1070mm x 850mm x 860mm/42.1in x 33.5in x 33.9in
Multi pack (140) weight: 290kg/640lb
Nominal diameter: 203mm/8in
Power rating1: 100Wrms
Nominal impedance: 8ohm
Sensitivity2: 99dB
Frequency range: 800-5000Hz
Voice coil diameter: 45mm/1.75in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.57kg/20oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Treated paper
Suspension: Single
Xmax: n/a
Gap depth: n/a
Voice coil winding width: n/a
Small Signal Parameters
D: n/a
Fs: 450Hz
Mair: n/a
Mmd: n/a
Qms: n/a
Qes: n/a
Qts: n/a
Re: 6.70ohm
Vas: n/a
Bl: n/a
Cms: n/a
Rms: n/a
Le (at 1kHz): 0.34mH
Mounting Information
Overall diameter: 208mm/8.19in
Overall depth: 85mm/3.35in
Cut-out diameter: 183mm/7.20in
Mounting slot dimensions: 9.5mm x 5.5mm/0.37in x 0.22in
Number of mounting slots: 4
Mounting PCD range: 195-199mm/7.68-7.83in
Unit weight:1.9kg/4.2lb
Packed Dimensions & Weight
Single pack size W x D x H: 230mm x 230mm x 1100mm/9.1in x 9.1in x 4.3in
Single pack weight: 3kg/6.6lb
Multi pack (140) size W x D x H: 1070mm x 850mm x 860mm/42.1in x 33.5in x 33.9in
Multi pack (140) weight: 290kg/640lb
