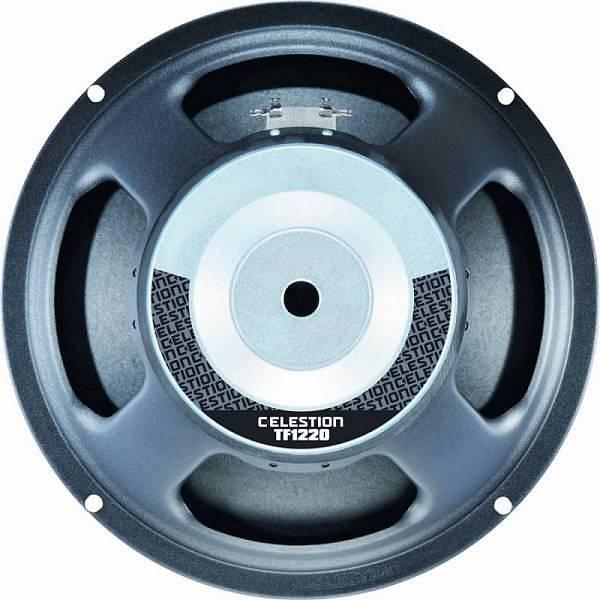

Celestion TF1220 150W 8ohm
Altre attrezzature live Celestion
€ 88,00
Tasse incluse
Puoi acquistarlo anche in 4 rate con FLOA a € 22,00
Su richiesta
Pagamenti
Pagamenti sicuri
Spedizione Veloce
in 24/48 ore
Ritira in negozio
puoi ordinare questo prodotto sul sito al prezzo online e ritirarlo gratuitamente in negozio.
Domande?
Contattaci per consigli, accessori, riparazioni e diritto di recesso.
Garanzia
I prodotti nuovi ed ex-demo sono garantiti 24 mesi. I Prodotti usati sono garantiti 12 mesi.
Altre attrezzature live Celestion TF1220 150W 8ohm
General Specifications
Nominal diameter: 305mm/12in
Power rating1: 150Wrms
Nominal impedance: 8ohm
Sensitivity2: 97dB
Frequency range: 60-4000Hz
Voice coil diameter: 50mm/2in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 1.2kg/42oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax3: 2mm/0.08in
Gap depth: 8mm/0.31in
Voice coil winding width: 12mm/0.47in
Small Signal Parameters
D: 0.26m/10.24in
Fs: 55Hz
Mms: 38.91g/1.37oz
Mmd: 32.0g/1.258oz
Qms: 4.30
Qes: 0.46
Qts: 0.42
Re: 5.54ohm
Vas: 84.7lt/2.99ft3
Bl: 12.70Tm
Cms: 0.21mm
Rms: 3.16kg/s
Le (at 1kHz): 0.735mH
Mounting Information
Overall diameter: 309mm/12.17in
Overall depth: 131mm/5.16in
Cut-out diameter: 283mm/11.14in
Mounting slot dimensions: Ø 7.9mm/0.31in
Number of mounting slots: 4
Mounting PCD range: 297mm/11.69in
Unit weight: 4kg/8.8lb
Packed Dimensions & Weight
Single pack size W x D x H: 330mm x 330mm x 150mm/13.0in x 13.0in x 5.9in
Single pack weight: 5kg/11lb
Multi pack (60) size W x D x H: 1080mm x 980mm x 880mm/42.5in x 38.6in x 34.6in
Multi pack (60) weight: 265kg/580lb
Nominal diameter: 305mm/12in
Power rating1: 150Wrms
Nominal impedance: 8ohm
Sensitivity2: 97dB
Frequency range: 60-4000Hz
Voice coil diameter: 50mm/2in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 1.2kg/42oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax3: 2mm/0.08in
Gap depth: 8mm/0.31in
Voice coil winding width: 12mm/0.47in
Small Signal Parameters
D: 0.26m/10.24in
Fs: 55Hz
Mms: 38.91g/1.37oz
Mmd: 32.0g/1.258oz
Qms: 4.30
Qes: 0.46
Qts: 0.42
Re: 5.54ohm
Vas: 84.7lt/2.99ft3
Bl: 12.70Tm
Cms: 0.21mm
Rms: 3.16kg/s
Le (at 1kHz): 0.735mH
Mounting Information
Overall diameter: 309mm/12.17in
Overall depth: 131mm/5.16in
Cut-out diameter: 283mm/11.14in
Mounting slot dimensions: Ø 7.9mm/0.31in
Number of mounting slots: 4
Mounting PCD range: 297mm/11.69in
Unit weight: 4kg/8.8lb
Packed Dimensions & Weight
Single pack size W x D x H: 330mm x 330mm x 150mm/13.0in x 13.0in x 5.9in
Single pack weight: 5kg/11lb
Multi pack (60) size W x D x H: 1080mm x 980mm x 880mm/42.5in x 38.6in x 34.6in
Multi pack (60) weight: 265kg/580lb
