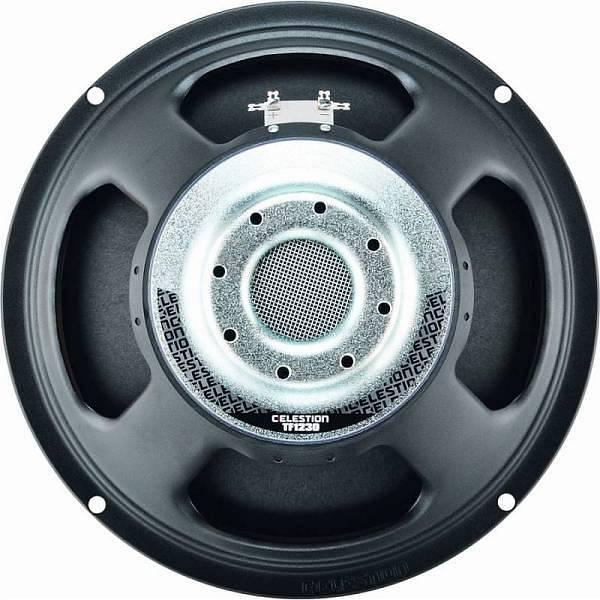

Celestion TF1230 8ohm
Altre attrezzature live Celestion
Pagamenti
Pagamenti sicuri
Spedizione Veloce
in 24/48 ore
Ritira in negozio
puoi ordinare questo prodotto sul sito al prezzo online e ritirarlo gratuitamente in negozio.
Domande?
Contattaci per consigli, accessori, riparazioni e diritto di recesso.
Garanzia
I prodotti nuovi ed ex-demo sono garantiti 24 mesi. I Prodotti usati sono garantiti 12 mesi.
Altre attrezzature live Celestion TF1230 8ohm
Nominal diameter: 305mm/12in
Power rating1: 350Wrms
Nominal impedance: 8ohm
Sensitivity2: 94dB
Frequency range: 45-3000Hz
Voice coil diameter: 75mm/3in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 1.4kg/48oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax3: 5mm/0.19in
Gap depth: 8mm/0.24in
Voice coil winding width: 17.5mm/0.69in
Small Signal Parameters
D: 0.26m/0.24in
Fs: 56.9Hz
Mms: 58.59g/2.07oz
Mmd: 51.68g/1.82oz
Qms: 2.411
Qes: 0.615
Qts: 0.490
Re: 5.18ohm
Vas: 53.3lt/1.88ft3
BI: 13.29Tm
Cms: 0.133mm
Rms: 8.69kg/s
Le (at 1kHz): 1.20mH
Mounting Information
Overall diameter: 309mm/12.17in
Overall depth: 140mm/5.5in
Cut-out diameter: 283mm/11.14in
Mounting slot dimensions: Ø 7.9/0.31
Number of mounting slots: 4
Mounting PCD range: 297mm/11.69in
Unit weight: 4.3kg/9.46lb
Packed Dimensions & Weight
Multi pack (60) size W x D x H: 1080mm x 980mm x 880mm/42.5in x 38.6in x 34.6in
Multi pack (60) weight: 190kg/419lb
