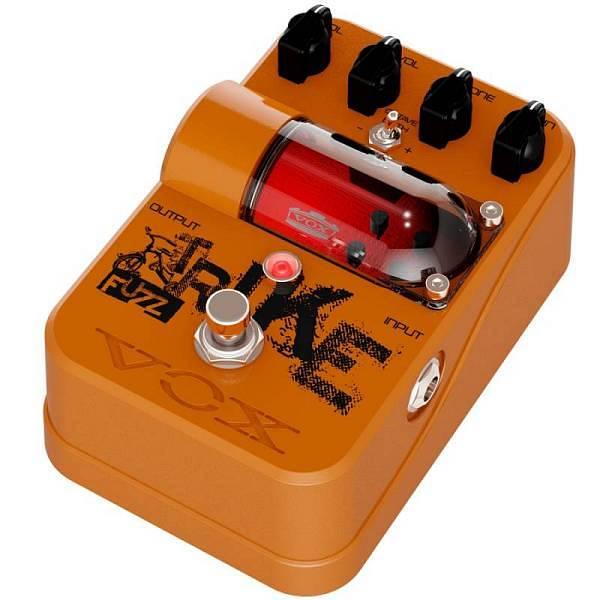

Vox TRIKE FUZZ Tone Garage - pedale octave fuzz

This is an octave fuzz overflowing with vintage character, utilizing specially selected diodes. It covers not only a range of one octave up, but also two octaves down. You can choose three types of octave settings: +1 or, -1 and -2, or all upward and downward octaves to obtain thick vintage fuzz sounds. In addition, there's a tone control for +1 octave and a volume control for -2 octave. Since the Trike Fuzz operates the downward octave circuits in series and combines them in parallel with the upward octave at the end, you can create a diverse range of sounds that cannot be obtained with existing octave fuzz units.

VOX TRIKE FUZZ Specifications

Input impedance: 680kΩ

Output impedance: 2.2k Ω

Connections: INPUT jack (guitar input), OUTPUT jack (line output)

Power: AA battery x 6 / AC adapter / DC 9V (Option)

Consumption current: 14mA

Battery Life: Approximately 280 hours

Dimensions: (W x D x H): 87 x 132 x 63 / mm, 3.43 x 5.20 x 2.48 / inch

Weight: 420 g
