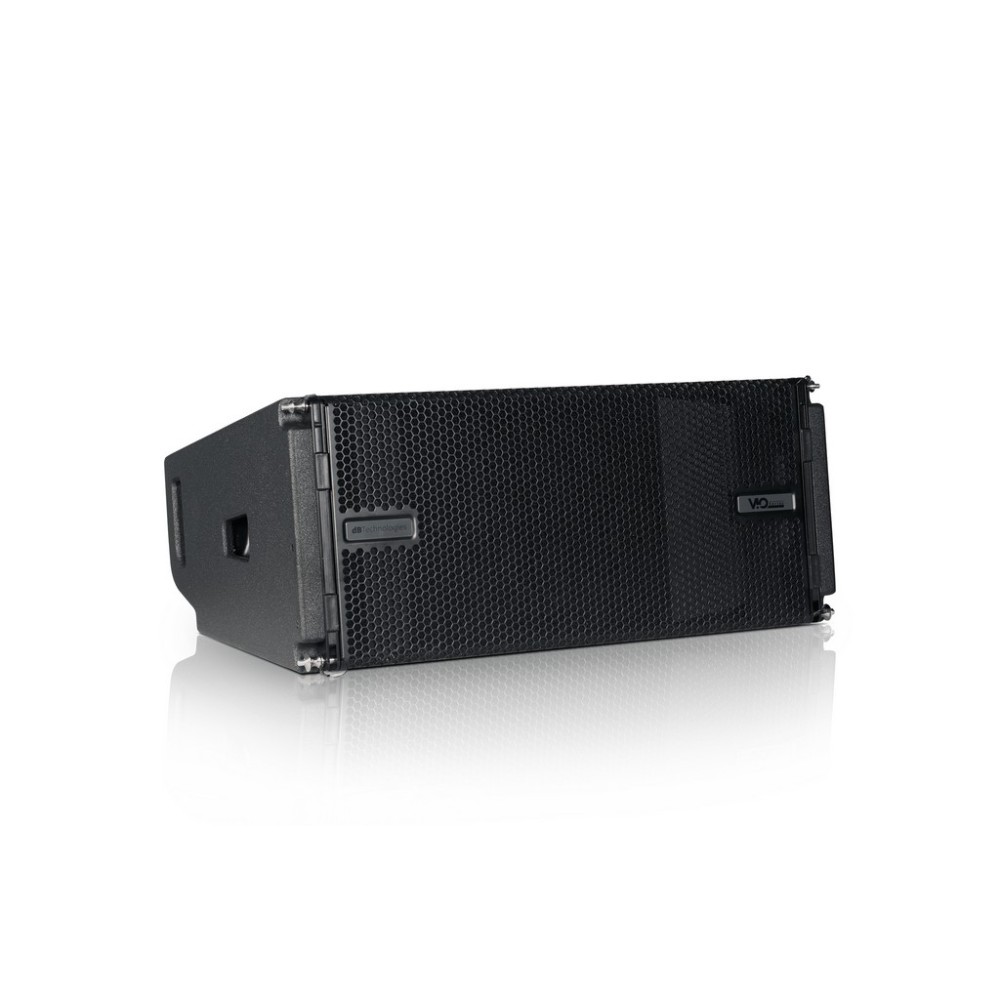

DB TECHNOLOGIES VIO L208 LINE ARRAY ATTIVO A 2 VIE

DATI TECNICI

Speaker Type2-way Active Line Array Module

DATI ACUSTICI

Usable Bandwidth [- 6 dB]75 Hz - 20 KHz

Frequency Response [+/- 3dB]85 Hz -18,1 KHz

Max SPL133.5 dB

HF1x1.4"

Voice Coil HF3"

Type HFNeodymium

LF2x8"

Voice Coil LF2"

Type LFNeodymium

Horizontal Directivity100°

Vertical Directivitydepends on array size and configuration

AMPLIFICATORE

Amp TechnologyDigipro G3 [bi-amped]

Amp ClassClass-D

Power RMS900 W

Peak Power1800 W

CoolingConvection

AD/DA Converter24 bit/48 KHz

LimiterDual Active Peak, RMS, Thermal

Processing (filters)FIR Linear Phase Filters

Crossover Frequency LF-HF1000 Hz

INPUT SECTION

Signal Input1xXLR fem, Bal.

Signal Output1xXLR male, Bal.

NetworkRDNet remote control RJ45 connector IN/OUT

Mains Connections1x PowerCON TRUE1 In

1x PowerCON TRUE1 Out

Controls1xSpeakers Coupling (7 presets)

1x HF Compensation (8 presets)

1XInput Attenuation Rotary Switch

MECCANICA

HousingMultiplex Plywood

Polyurea painted

Handles1 x Side, 2 on back

Rain CoverIncluded

Rigging PointsIntegrated 3-point flying hardware

Width600 mm (25.98 in)

Height260 mm (10.23 in)

Depth390 mm (15.35 in)

Weight18.1 Kg (39.9 lbs)
