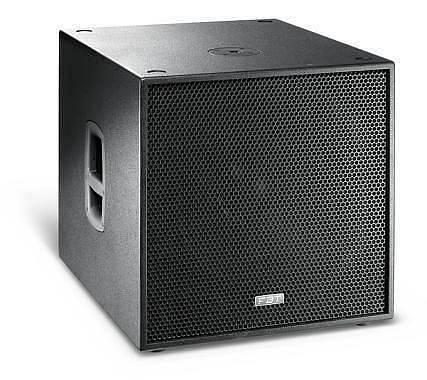

FBT Subline 118 SA Processed Active Subwoofer 1200W

Bass-reflex design subwoofer
460 mm (18”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT by B&C
Frequency response from 33Hz - 100Hz
1200W RMS Class D power amplifier with switch mode power supply
Digital Signal Processor with 6 presets, 4 equalization with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m
Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators
15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Code:
41221
Configuration:
1 vie
Built-in amplifier LF/HF:
1200 W RMS
Built-in amplifier peak LF/HF:
2400 W
Frequency response:
33Hz-100Hz -6dB
Low Frequency woofer:
18 - 3 coil mm
Maximum SPL cont/peak:
134/137 half-space dB
Dispersion:
omnidirectional HxV
Input impedance:
22 Kohm
Crossover Frequency:
100Hz KHz
AC Power requirements:
800 VA
Input connector:
stereo XLR with loop
Power cord:
7/16.4 m
Net Dimension (WxHxD):
555x572x666 / 21.8x22.5x26.2 mm
Net Weight:
44.5/98.1 kg
Transport Dimension (WxHxD):
800x642x800 / 31.5x25.3x31.5 mm
Transport Weight:
54.5/120.1 kg
