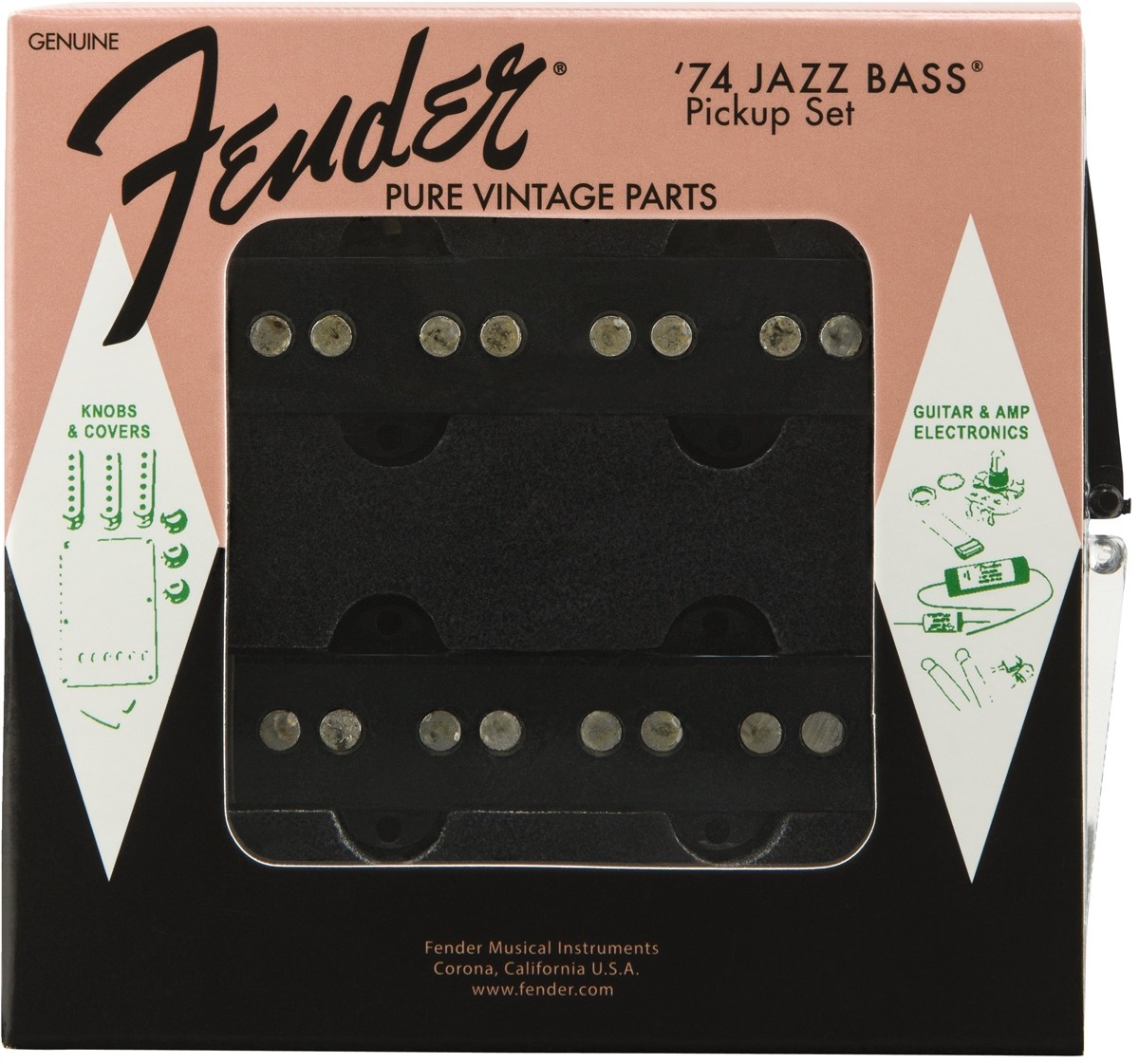

Fender Pure Vintage '74 Jazz Bass Pickup Set, Black (2)

From vintage bobbin construction to genuine original-era cloth wiring, all Fender Pure Vintage pickups are wound to precise specifications for authentic, traditional Fender tone and performance.

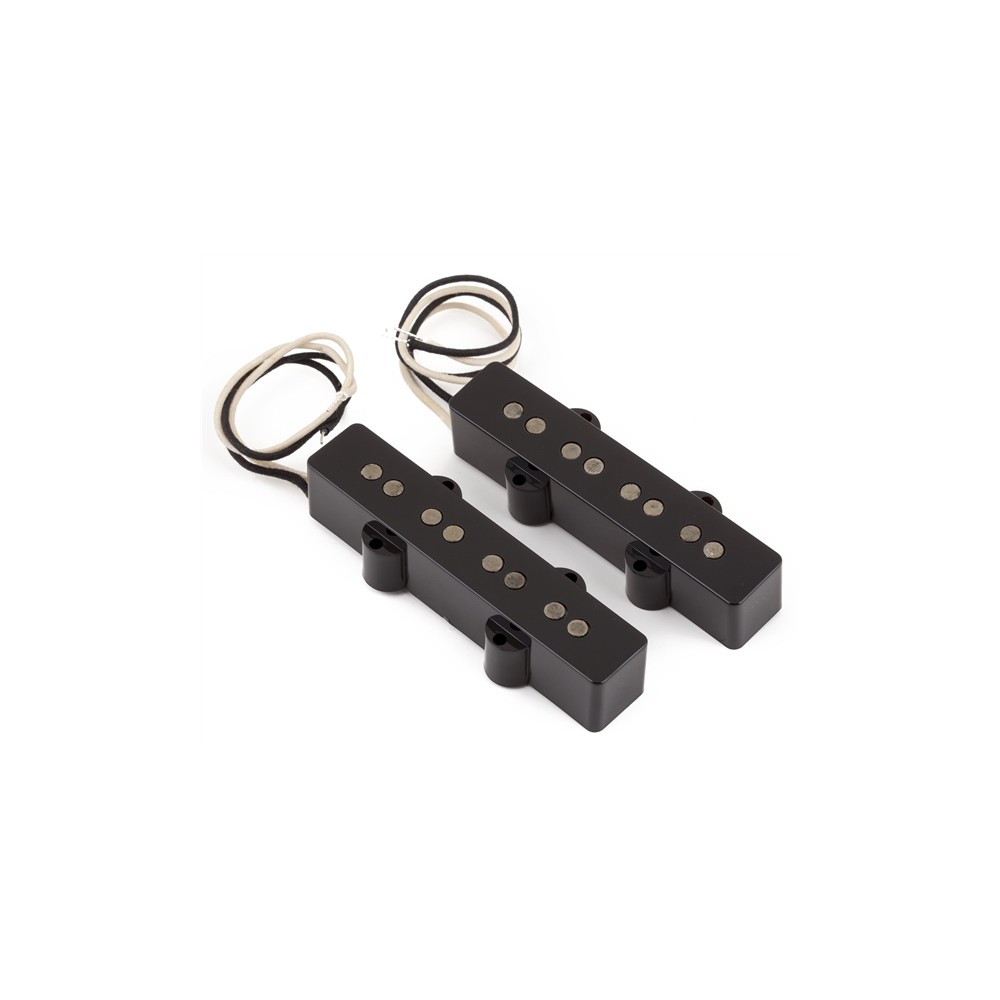

Pure Vintage '74 Jazz Bass Pickup Set

As Heard on
Fender American Vintage ’74 Jazz Bass® guitar

With a versatile vintage voice full of low-end warmth and their distinct midrange, Fender's Pure Vintage ’74 single-coil Jazz Bass pickups are the ideal solution for the bass player who prefers slap-style funk, soulful fingerstyle playing and aggressive pickups.

Tonal Characteristics

• Enamel-coated magnet wire delivers warm vintage-style tones
• Alnico 5 magnets add more focus and enhanced dynamics
• Flush-mount polepieces produce even string response
• Shellac-potted

Product Details

• Period-correct cloth wire and fiber bobbin construction
• Includes black pickup covers

Included Components
Fender Pure Vintage ’74 Jazz Bass pickups come with all parts needed for installation, including:

• Mounting screws
• Pickup height adjustment tubing
• Wiring diagram

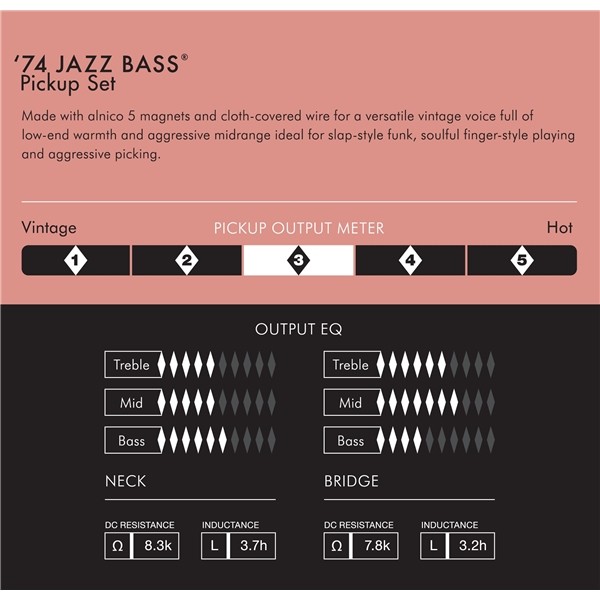

Output Rating (Bass/Mid/Treble)

• Neck:  6/5/5
• Bridge: 4/7/6

Other Specifications

DC Resistance

• Neck: 8.3k ohms
• Bridge: 7.8k ohms

Inductance

• Neck: 3.7 henries
• Bridge: 3.2 henries
